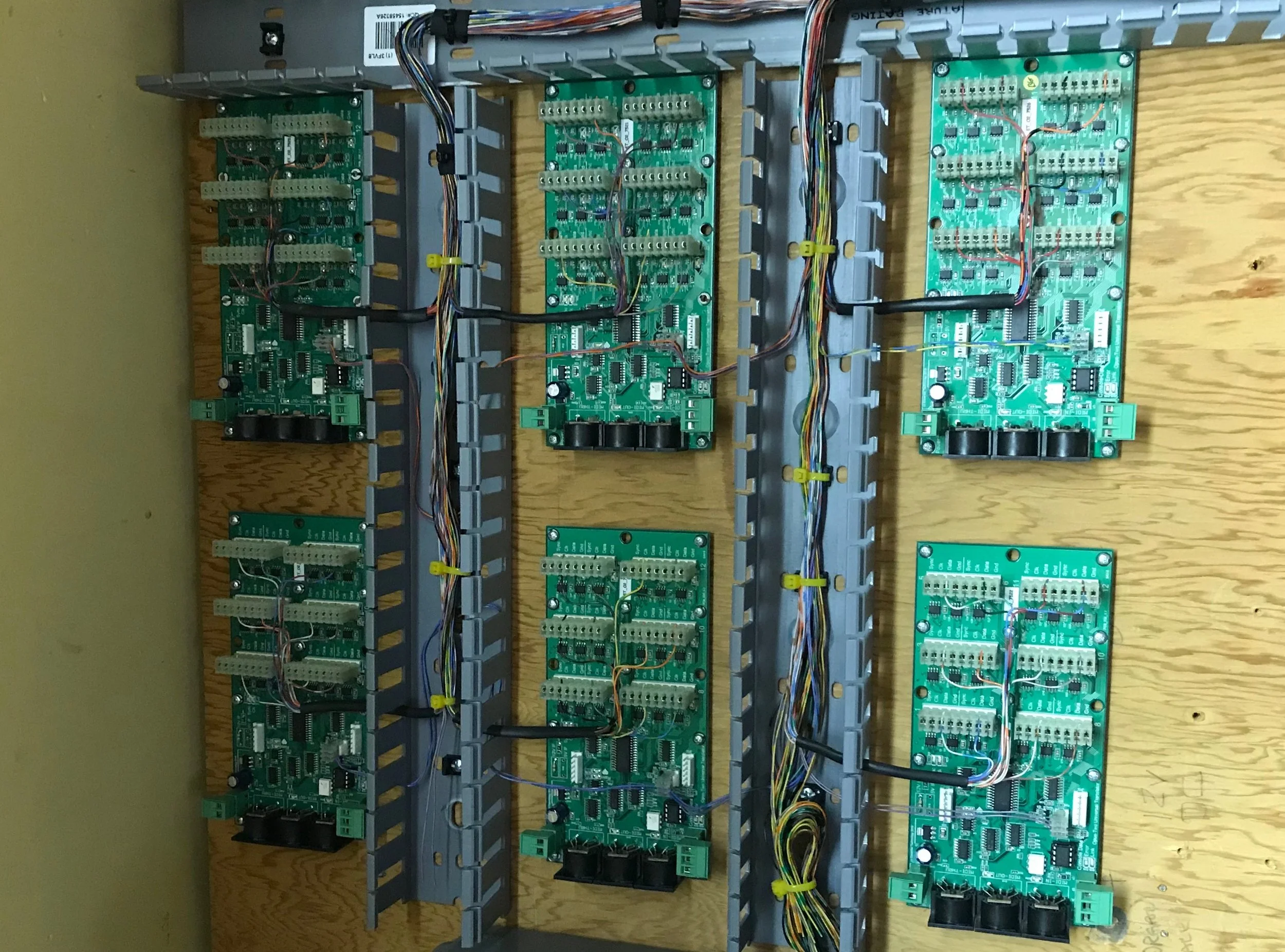

2012 - Original Series Relay
This relay was built ahead of time and has been wired, about to be installed.

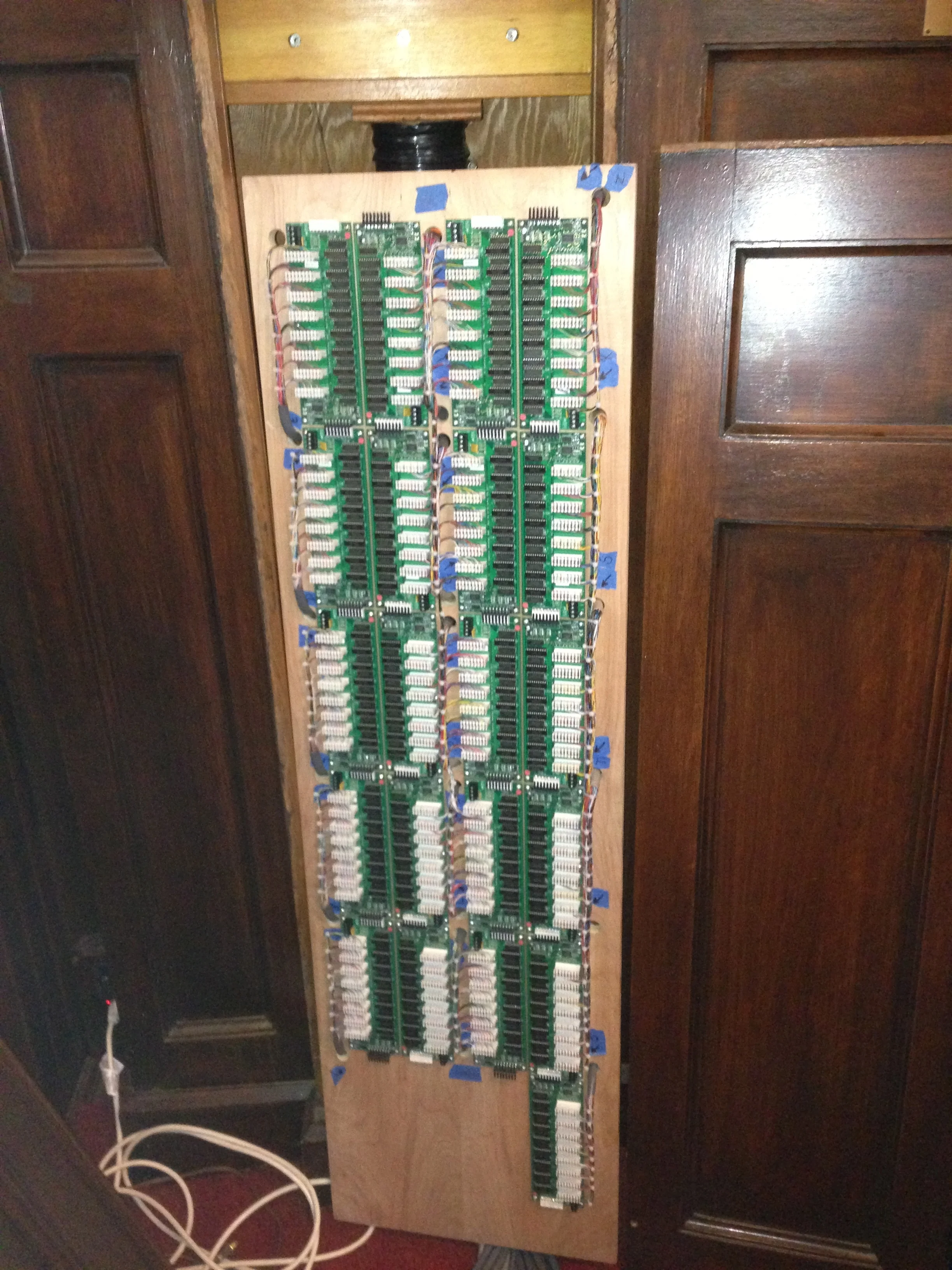

2012 Relay - Installed
Original Series, wired and installed October 2012. Still in place, never had a single service call (as of 7/17/18).

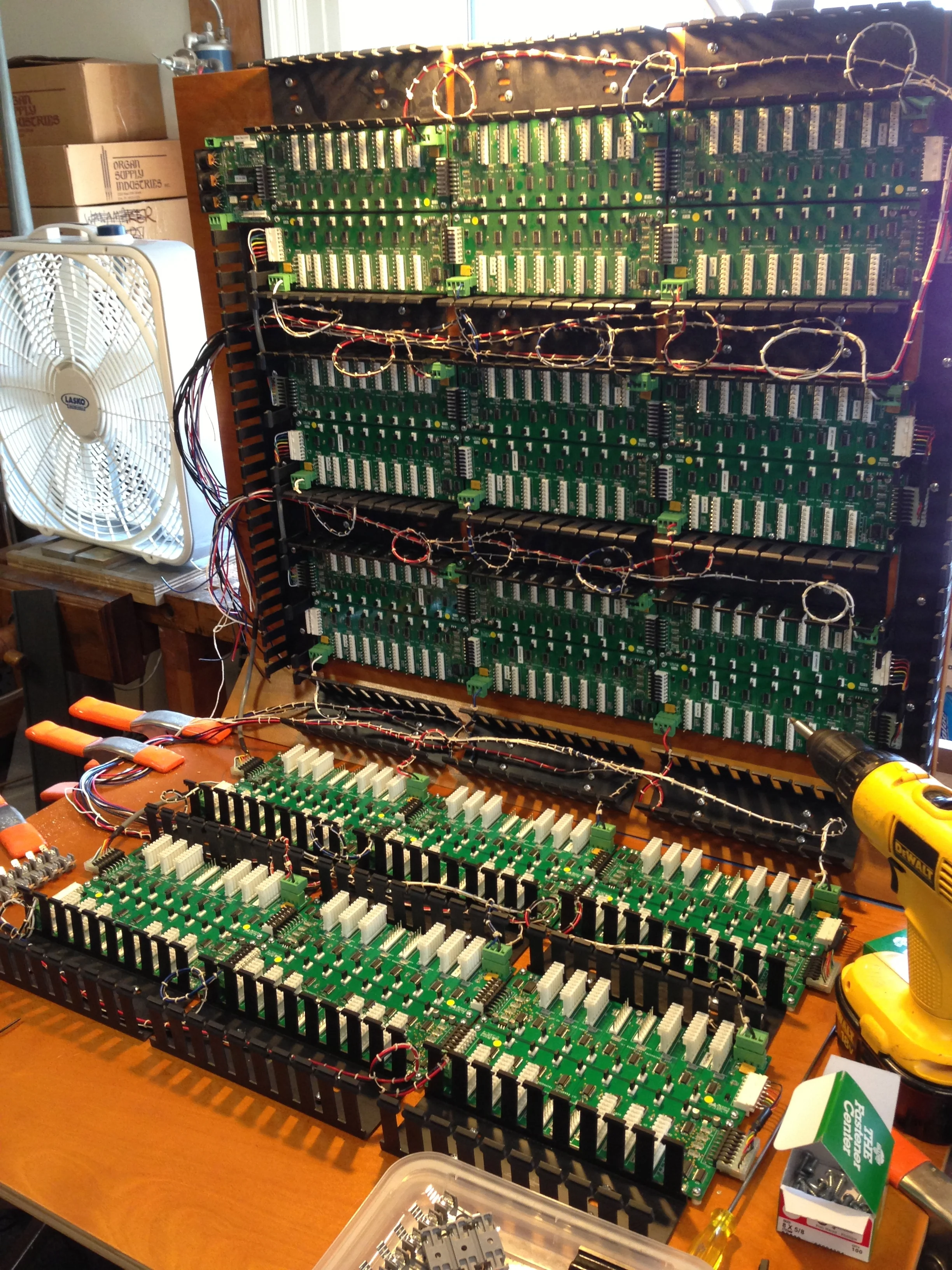

Console Input Panel being built ahead of time in shop (June 2013).
Input panel installed and wired by Matthew.

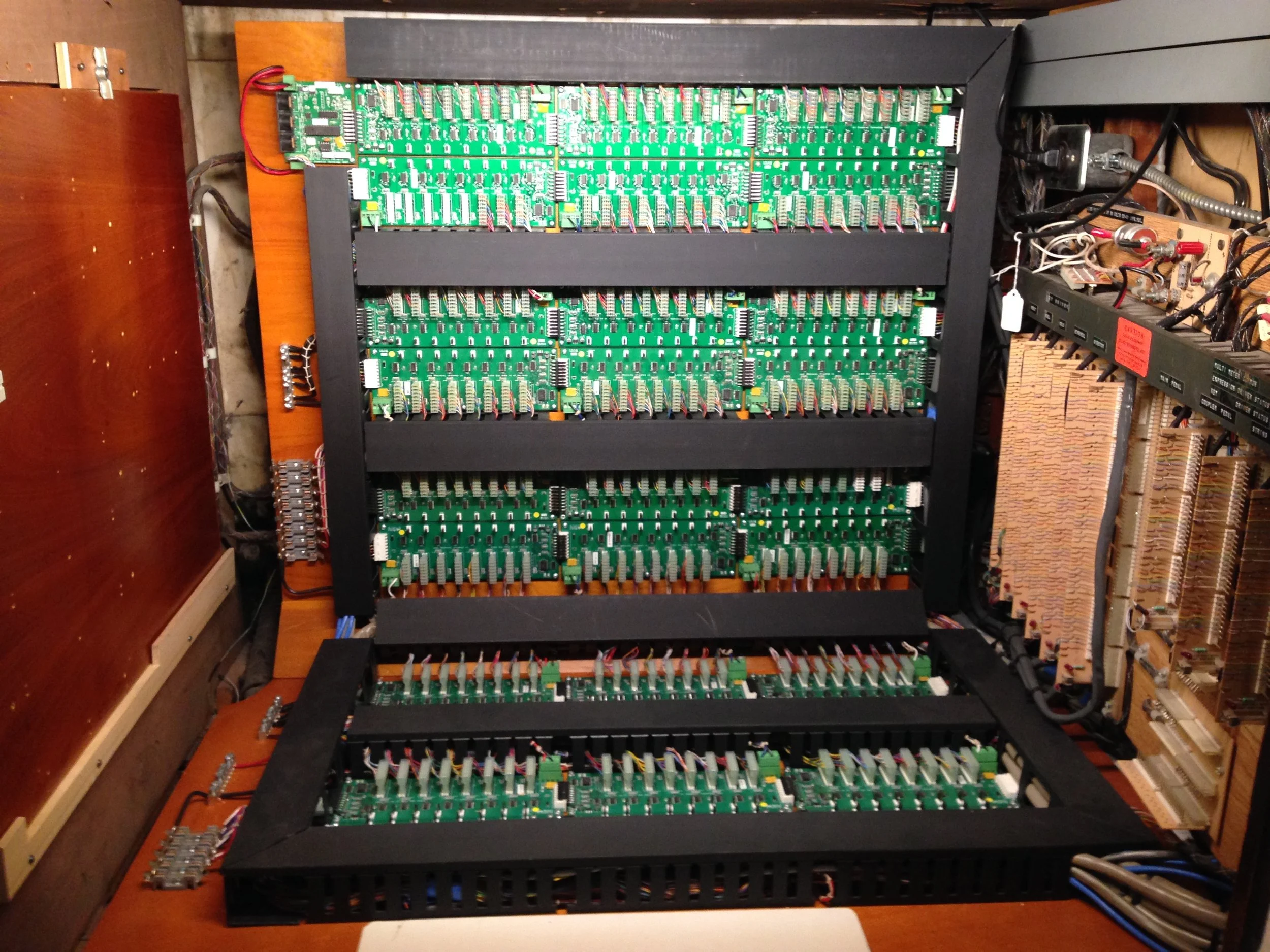

This chamber output panel was built ahead of time to fit on top of an existing junction panel that was prewired. Simple add this panel on top, wire, and done.
This is the multi-division primary output panel. From this panel, key notes are sent all around the organ for multiple divisions.
Console Under Construction
Outside contractor wiring console onto pre-made panel.
Atlantic City Midmer Losh
One of many panels.
Project in Ridgefield, CT

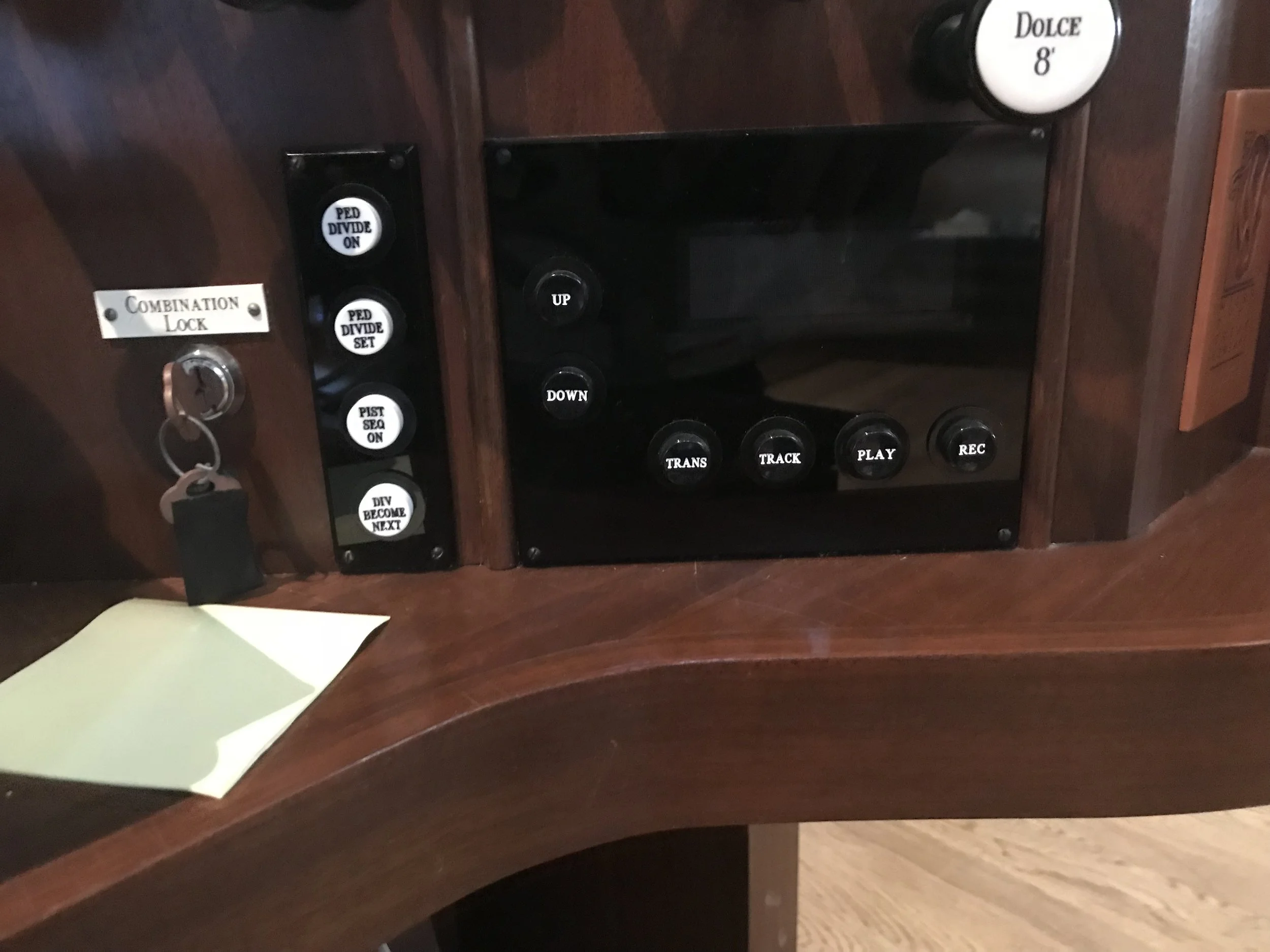

Used a large piece of plexiglass to cover Peterson display hole and smaller piece to cover more Peterson holes.

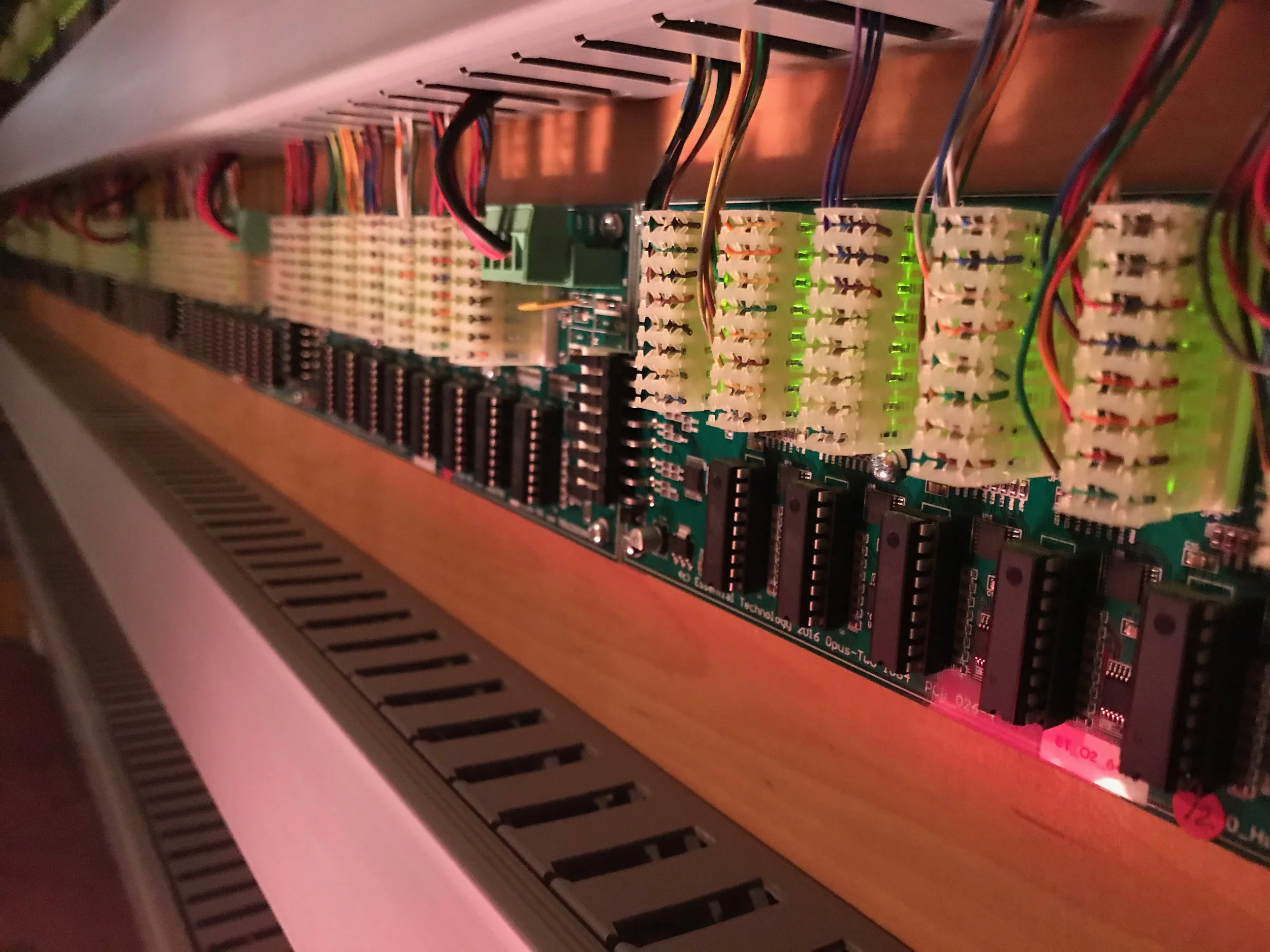

Midmer Losh Swell Relay Panel

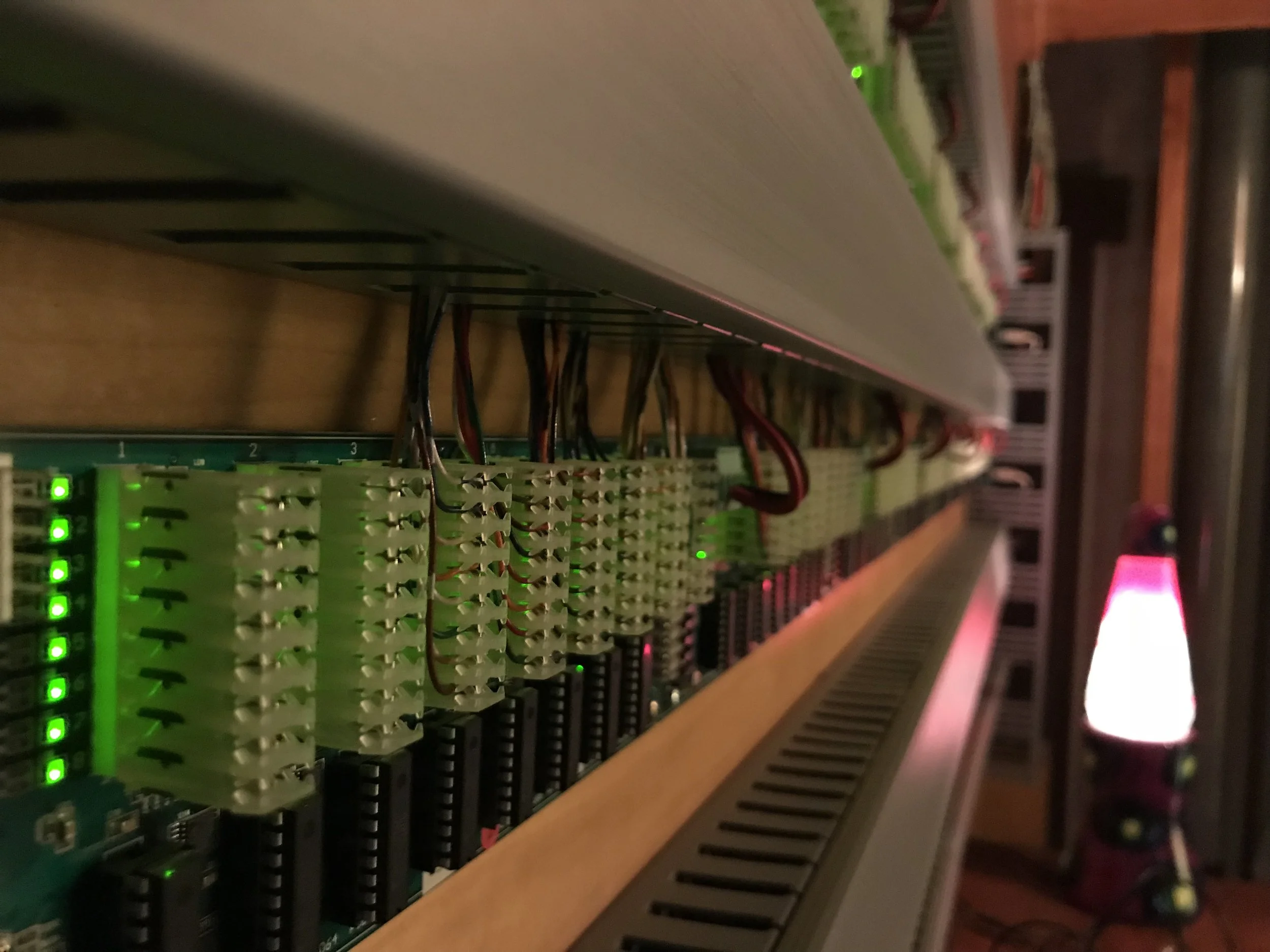

21 cards driving one “column” of windchests in the Swell Organ. The curators put the lava lamp there..

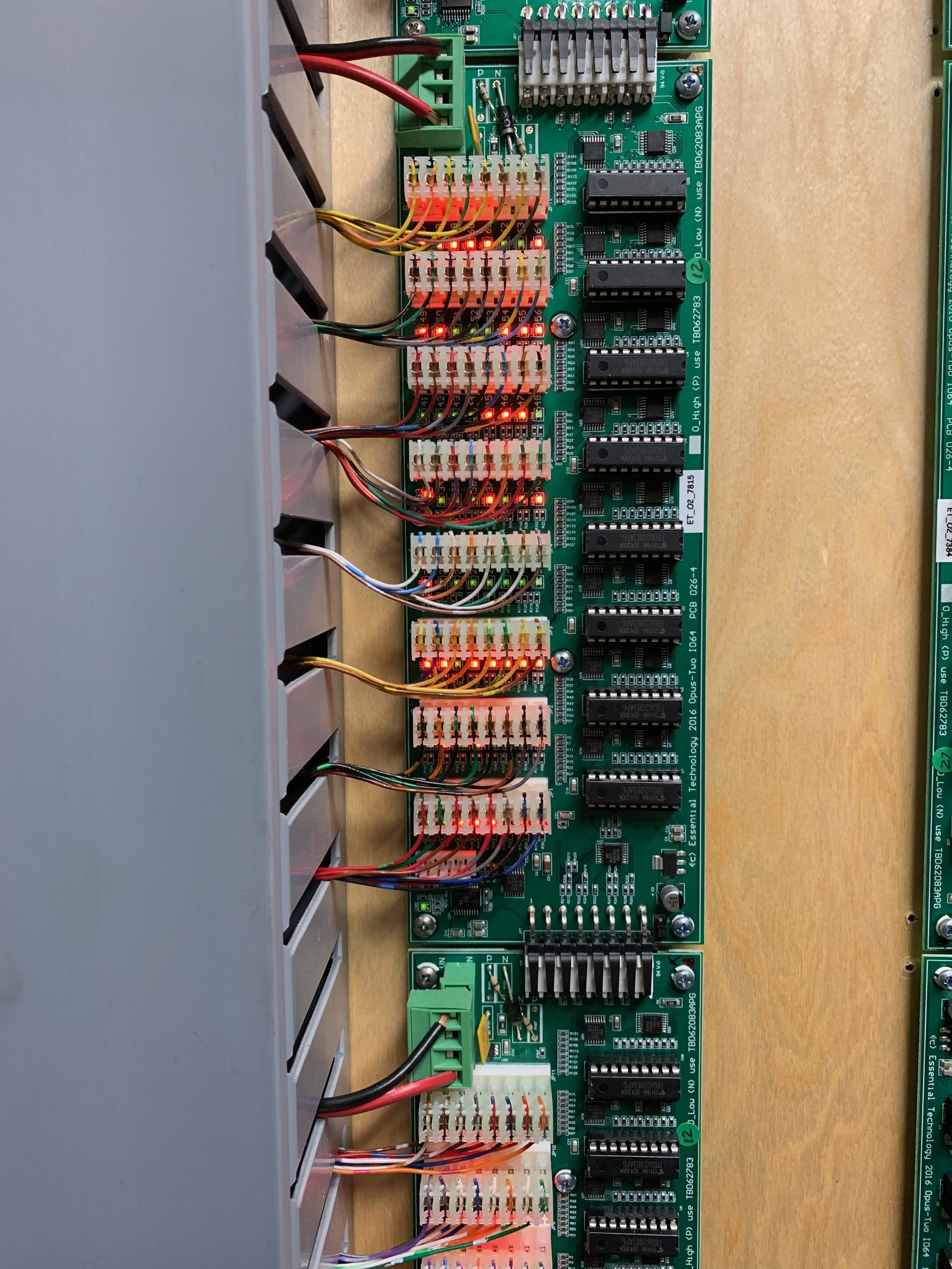

Opus-Two 12 pin backplane I/O board onto an existing junction.

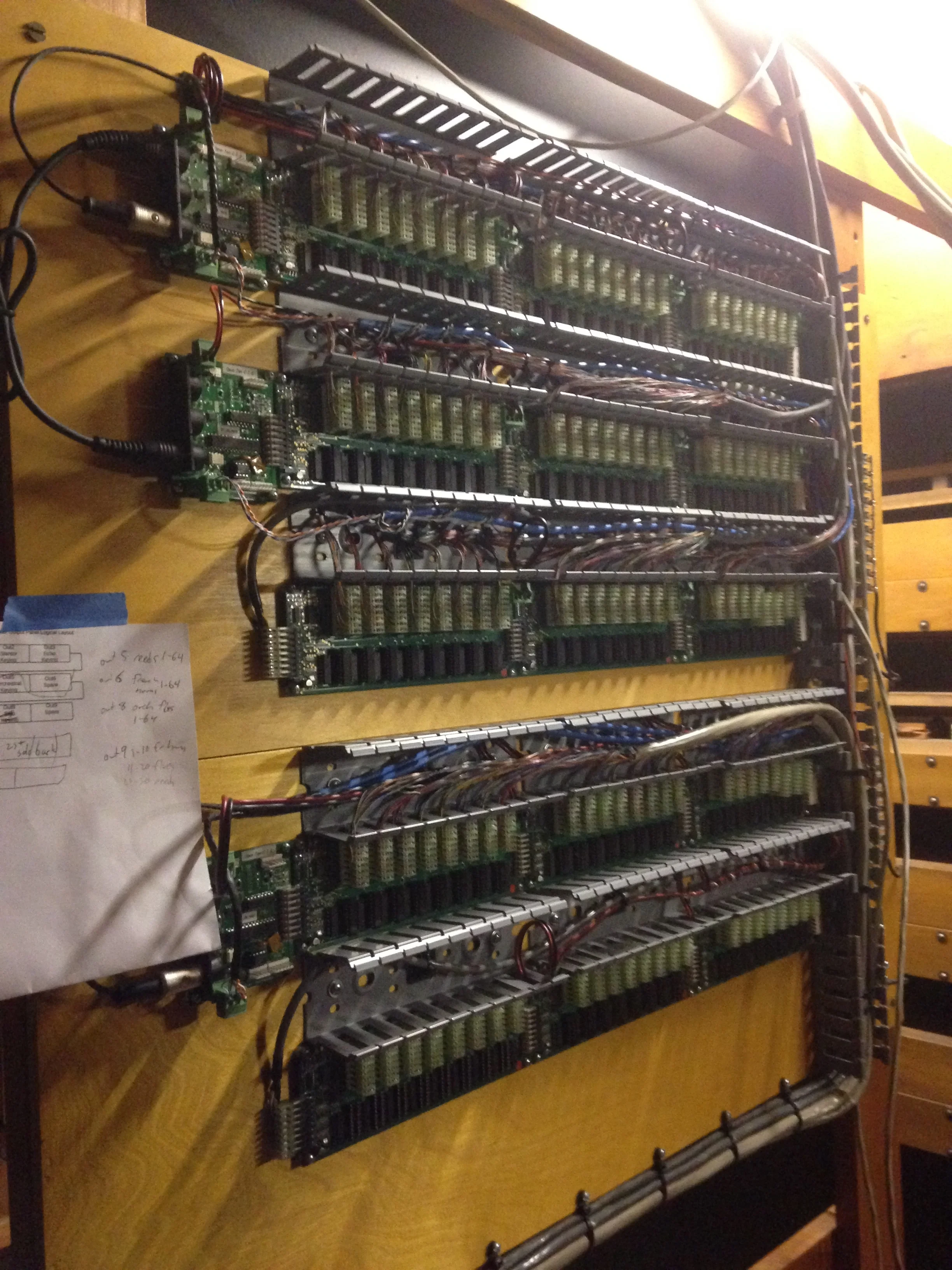

Opus-Two Universal Translators driving a large Z-Tronics relay.
